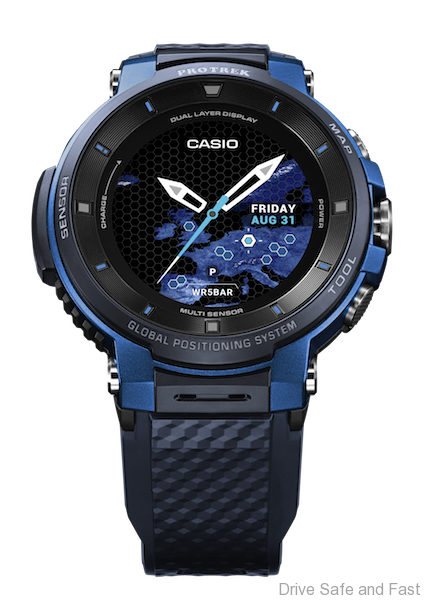

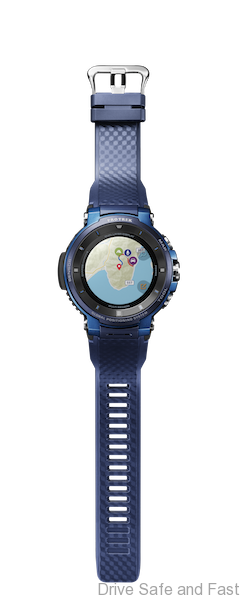

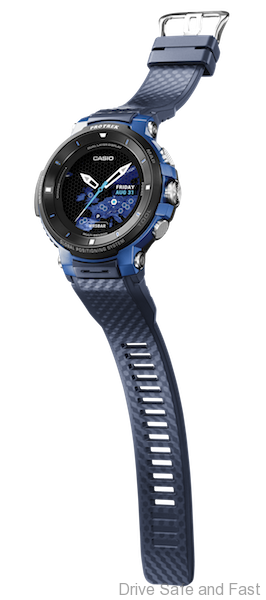

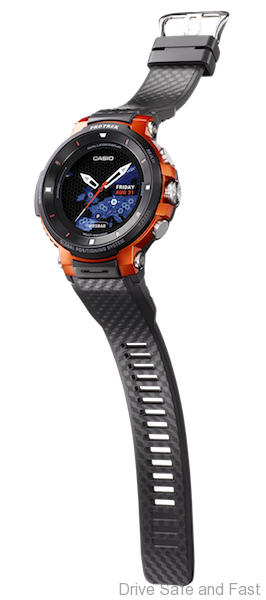

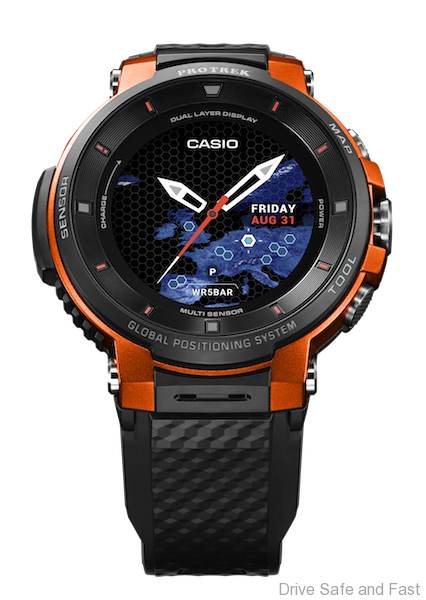

Casio is releasing the new addition of the PRO TREK Smart series of wrist devices for outdoor enthusiasts in January 2019. The WSD-F30 enables the use of offline maps and GPS log recording for up to three consecutive days*.
*Using only GPS log recording and map display function for eight consecutive hours each day and three consecutive days (varies according to use)
- Extend Mode for using color maps and GPS offline up to three consecutive days

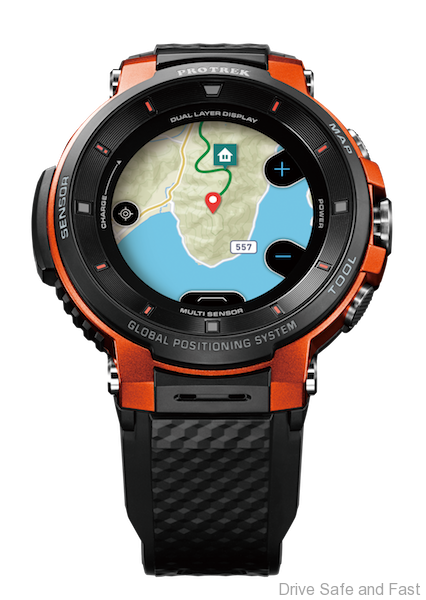

The new WSD-F30 comes with Extend Mode, which enables use of offline color maps, and GPS for up to three days on just a single charge. In Extend Mode, time and measurement data is continuously shown on the monochrome display, and a color map can be displayed with a push of button. Extend Mode also conserves energy by switching the operating system to energy-saving stand-by mode on a schedule set by the user. It also ensures optimal power management based on the activity plan, allowing the user to track his or her current location on an offline map and record tracks during activities longer than a single day.
- New and improved dual-layer display

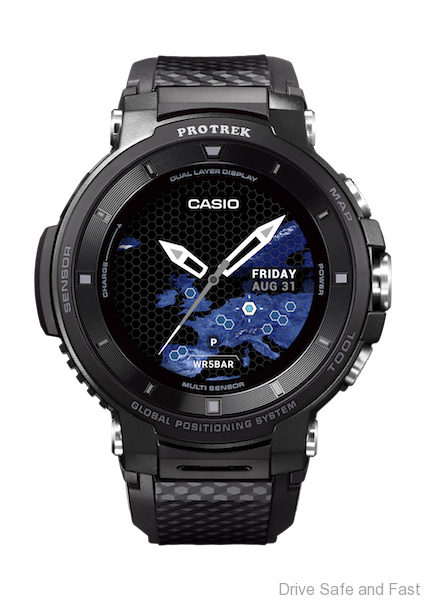

The WSD-F30 features a new and improved dual-layer monochrome and color display. The new color display employs an organic EL display that shows maps and data in finer detail. The layout of the monochrome display now shows more than just the time; it also displays atmospheric pressure/altitude and compass bearing, as befits the PRO TREK outdoor gear brand. The wrist device also comes with Multi Timepiece Mode, an evolution of the popular Timepiece Mode that allows only time data to be shown in monochrome while toggling off smartphone communication and the color display. In addition to the time, Multi Timepiece Mode now shows measurement data such as altitude and atmospheric pressure in monochrome, while still extending battery life without a charge to about a month, like its predecessor. This feature provides useful information for outdoor activities at a glance while conserving energy.
- Smaller, thinner case for enhanced wearability

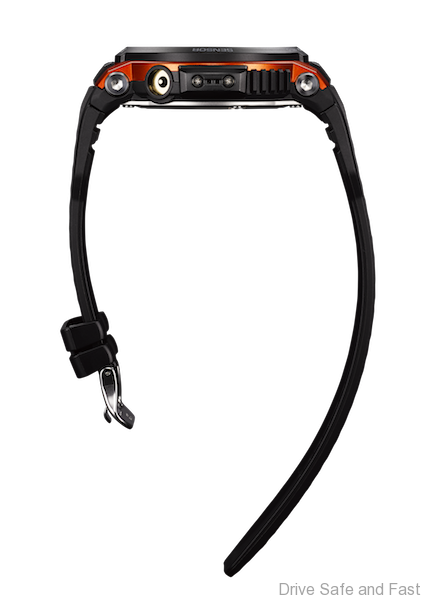

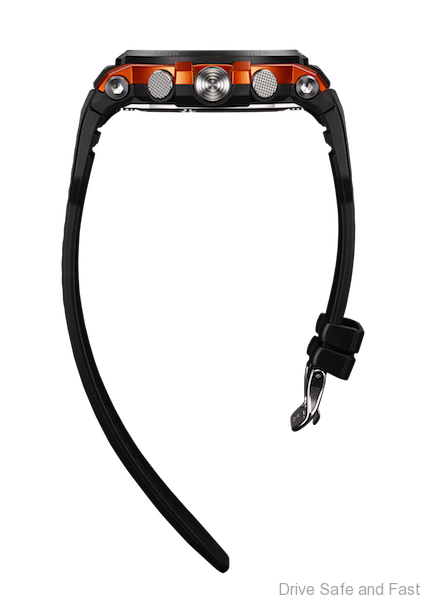

The inner components have been rearranged to realize a watch case that is 3.9 mm narrower and 0.4 mm thinner than before, for a more compact profile that also looks good on trim wrists. Nano treatment gives the resin bezel a metal-like luster for a luxury feel. The watchband has been improved and is now more flexible and has more holes for greater adjustability and fit.
Specifications WSD-F30
| Water Resistance | 5 bar (50 meters)*1 |
| Environmental Durability | MIL-STD-810 (United States military standard issued by the U.S. Department of Defense),*2 low-temperature resistance (-10°C) |
| Display | 1.2-inch dual layer display Color OLED (390×390 pixels) and monochrome LCD |
| Touchscreen | Capacitive touchscreen (anti-fouling coating) |
| GPS | Compatible (including GLONASS and Michibiki) |
| Color Maps | Compatible (supports offline use, can save up to five offline maps) |
| Sensors | Pressure (air pressure, altitude) sensor, accelerometer, gyrometer, compass (magnetic) sensor |
| Microphone | Yes |
| Vibrator | Yes |
| Wireless Connectivity | Bluetooth® V4.1 (Low Energy) Wi-Fi (IEEE 802.11 b/g/n) |
| Buttons | MAP button, Power button, TOOL button |
| Battery | Lithium-ion battery |
| Charging Method | Magnetic charging terminal |
| Recharging Time | Approx. 3 hours at room temperature |
| Battery Life (When GPS Not in Use) | Normal use (color display): 1.5 days, roughly Multi Timepiece Mode (timekeeping and sensors only)*3: 1 month, roughly (Varies according to use) |
| Size of Case | Approx. 60.5 mm×53.8 mm×14.9 mm (H×W×D) |
| Weight | Approx. 83g (including wristband) |
| OS | Wear OS by Google |
| Operating Environment | Wear OS by Google works with phones running Android 4.4+ (excluding Go edition) or iOS 9.3+. Supported features may vary between platforms and countries. |
*1 Based on in-house test by Casio.
