Wireless Car Charging Around The Corner

wireless charging mercedes1

Good news for electric car buyers. Especially those with lots of money. The next generation Mercedes electric/plugin car buyers will not need to wrestle with cables and plugs. The 2017 Mercedes-Benz S-Class 500 e electric hybrid will be sold with a plug/cable-free induction charging system. You just need to drive over a plate and leave the car battery to top itself up.

The 2017 500 e is an update on the existing Mercedes 500 plug-in hybrid. The 500 e will continue to have a turbocharged petrol engine and an electric motor, and will offer an electric-only range of about 30plus kilometers.

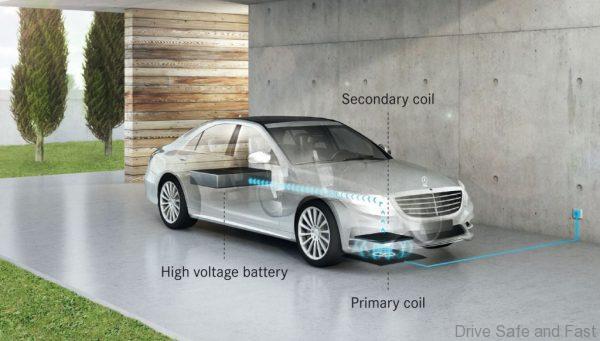

Owners will be able to position the car over a special coil in a protected base plate in their garage, a message in the car will alert the driver when the car is in a transmittable location. The presence of a second coil in the car will then create an electromagnetic field that will act as a carrier of electrical energy at a power output of 3.6kWh.

Smartphones use similar technology for wireless charging. Mercedes claims a figure of 90% efficiency for the system, which is only slightly lower than the figure for plugging in, so charging times will only be marginally longer.

Goodyear 650x85(DSF)

wireless charging mercedes2

The technical data at a glance:

ModelS 500 PLUG-IN HYBRID
Internal combustion engine:
Number of cylinders/arrangement6/V
Mixture formationHigh-pressure injection, 2 turbochargers
Displacement (cc)2996
Rated output (kW/hp at rpm)245/333 at 5250-6000
Rated torque (Nm at rpm)480 at 1600-4000
Electric motor:
Output (kW)85
Torque (Nm)340
System output (kW/hp)325/442
System torque (Nm)650
Consumption combined from (l/100 km)2.8
CO2 emissions combined from (g/km)65
Efficiency classA+
Electric range (km)33
Charge time 20%-100% (400 V/16 A – 230 V/8 A) (h)2 – 4.1
Acceleration 0-100 km/h (s)5.2
Top speed (km/h)250
Top speed electric (km/h)140
